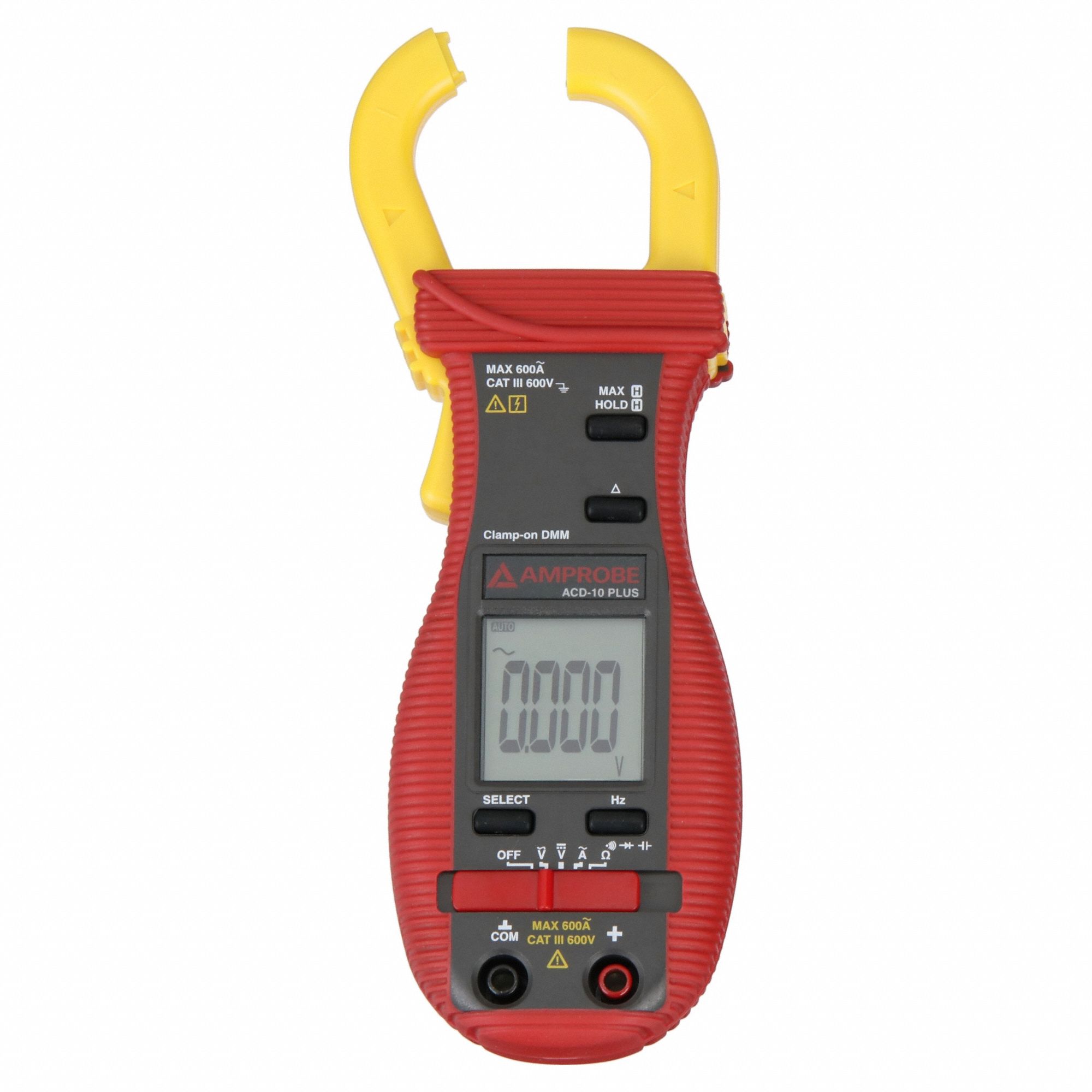

METER DIGITAL CLAMP CAP FREQ

METER DIGITAL CLAMP CAP FREQ

AMPROBE

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $247.78 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # FETACD10PLUS
  • Mfr. Model # ACD-10-PLUS
  • UNSPSC # 41113601
  • CATALOGUE PAGE # 154
  • Shipping Weight 1.06 lbs

Technical Specs

  • ItemDigital Clamp Meter
  • Safety RatingCAT III 600V
  • Maximum AC Current Measurement600 A
  • Maximum DC Voltage Measurement600 V
  • Parameters MeasuredAC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Frequency, Resistance
  • DustproofNo
  • Data LoggingYes
  • Removable ScreenNo
  • Jaw Opening0.4 in
  • Calibration Certificate IncludedNo
  • Basic AC Voltage Accuracy+/- 2.0% + 5 digits
  • Data HoldYes
  • Frequency Measurement Accuracy+/- 0.5%+4 digits
  • Display TypeLCD
  • Auto Power OffYes
  • Batteries IncludedYes
  • Battery SizeCR2032
  • Digital/AnalogDigital
  • Frequency Counter10 Hz to100 kHz with Test Leads: 40 Hz to 400 Hz with Jaw
  • IncludesManual, Soft Carrying Pouch, Test Leads
  • Manufacturers Warranty Length1 yr
  • Maximum Conductor Size1.0 in (25mm)
  • Maximum Operating Temperature87 Degrees F
  • Maximum Storage Temperature140 Degrees F
  • Minimum AC Voltage Measurement4 V
  • Minimum DC Voltage Measurement400 mV
  • Minimum Operating Temperature39 Degrees F
  • Minimum Storage Temperature-4 Degrees F
  • Audible Continuity Yes
  • AC Response Calculation TRMS
  • Maximum AC Voltage Measurement 600 V
  • Current Leakage Testing No
  • Intrinsically Safe No
  • Waterproof No
  • Thermal Imaging No
  • Bluetooth Compatible No
  • Jaw Style Clamp On
  • Special Features Continuity Beeper, Measures Frequency, Resistance and Capacitance, Rubber Over-Molded Case Absorbs Shock
  • Basic DC Voltage Accuracy +/- 1.0% + 4 digits
  • Basic AC Current Accuracy +/- 1.5% + 8 digits
  • Capacitance Measurement Accuracy +/- 3.5% + 6 digits
  • Resistance Measurement Accuracy +/- 2.0% + 4 digits
  • Auto Ranging Yes
  • Battery Access Yes
  • Calibration Frequency 50 to 500 Hz
  • Diode Test Yes
  • Frequency Measurement Resolution 0.001 Hz
  • Instrument Counts 4,000
  • Maximum Capacitance Measurement 3,000 uF
  • Maximum Frequency Measurement 400 Hz
  • Maximum Resistance Measurement 40 megaohm
  • Minimum AC Current Measurement 40 A
  • Minimum Capacitance Measurement 500 nF
  • Minimum Frequency Measurement 40 Hz
  • Minimum Resistance Measurement 400 microohm
  • Peak Hold Yes
  • Country of Origin Taiwan (subject to change)
