StandardStandard tread allows more surface area of the tread to make contact with the floor surface than other styles of wheel tread, which allows the wheel to have a higher load capacity than wheels with a more rounded tread.
Caster Brake TypeThis describes the type of brake or lock on the caster.
Brakes prevent the caster from rolling forward and backward. Swivel locks prevent the caster from turning. Total locks prevent the caster from rolling forward and backward and keep it from turning.
Wheel DiameterDiameter is the distance through the centre of the wheel from one edge to the other. Wheels with a smaller diameter are suitable for indoor applications, while larger diameter wheels are suitable for outdoor terrain.
Quiet-Roll Medical Plate Casters
Quiet-roll medical plate casters provide smooth, quiet operation to help reduce noise that can disturb patients in medical settings, pharmacies, and laboratories. They have wheels with soft treads that help prevent damage to floors and thread guards to keep thread and other debris from entering and entangling their axles and damaging them. These plate casters attach to the bottom of beds, gurneys, IV poles, and maintenance carts.
Featuring a double-ball raceway swivel and a brake, this plate caster is capable of handling loads up to 1,000 pounds. The mounting plate is 4 x 4 1/2 inches, with an outside bolt hole spacing of 2 5/8 x 3 5/8 inches, and 3/8-inch mounting bolt diameter. The phenolic wheel is two inches wide and five inches in diameter. The wheel replacement number is 5-5-339.
Featuring a double-ball raceway swivel and a brake, this plate caster is capable of handling loads up to 1,000 pounds. The mounting plate is 4 x 4 1/2 inches, with an outside bolt hole spacing of 2 5/8 x 3 5/8 inches, and 3/8-inch mounting bolt diameter. The phenolic wheel is two inches wide and five inches in diameter. The wheel replacement number is 5-5-339.
This swivel plate caster with brake is load-rated to 700 pounds. The mounting plate measures 4 x 4 1/2 inches, with a 3/8-inch diameter mounting bolt. Replacements for the two-inch-wide and six-inch-diameter polyolefin wheel can be ordered with part number 5-6-839.
This swivel plate caster with brake is load-rated to 700 pounds. The mounting plate measures 4 x 4 1/2 inches, with a 3/8-inch diameter mounting bolt. Replacements for the two-inch-wide and six-inch-diameter polyolefin wheel can be ordered with part number 5-6-839.
With a 1 1/2-inch wide and three-inch diameter polyolefin wheel, this swivel plate caster can carry loads up to 300 pounds. The mounting plate is 4 x 4 1/2 inches, with a 3/8-inch mounting bolt diameter. The replacement wheel number is 4-3-819.
With a 1 1/2-inch wide and three-inch diameter polyolefin wheel, this swivel plate caster can carry loads up to 300 pounds. The mounting plate is 4 x 4 1/2 inches, with a 3/8-inch mounting bolt diameter. The replacement wheel number is 4-3-819.
This swivel caster features a brake and can handle loads up to 500 pounds. The mounting plate is 4 x 4 1/2 inches, with a mounting bolt diameter of 3/8 inches. The Performa wheel is two inches wide and five inches diameter. Replacement wheels can be ordered with number 5-5-459-2.
This swivel caster features a brake and can handle loads up to 500 pounds. The mounting plate is 4 x 4 1/2 inches, with a mounting bolt diameter of 3/8 inches. The Performa wheel is two inches wide and five inches diameter. Replacement wheels can be ordered with number 5-5-459-2.
This medium-duty swivel plate caster can carry up to 800 pounds and is made of zinc. The mounting plate is 4 x 4 1/2 inches, with a 3/8-inch mounting bolt diameter, and outside bolt hole spacing of 3 x 3 5/8 inches. The black, Maxim wheel is two inches wide and four inches in diameter. A replacement wheel can be ordered with number 5-4-531 SS.
This medium-duty swivel plate caster can carry up to 800 pounds and is made of zinc. The mounting plate is 4 x 4 1/2 inches, with a 3/8-inch mounting bolt diameter, and outside bolt hole spacing of 3 x 3 5/8 inches. The black, Maxim wheel is two inches wide and four inches in diameter. A replacement wheel can be ordered with number 5-4-531 SS.
Featuring a double-ball raceway swivel, this plate caster with brake is load-rated up to 500 pounds. The mounting plate is 4 x 4 1/2 inches, with an outside bolt hole spacing of 2 5/8 x 3 5/8 inches, and a 3/8-inch mounting bolt diameter. The polyolefin wheel is 2 inches wide, 6 inches in diameter, and the wheel replacement number is 4-6-819.
Featuring a double-ball raceway swivel, this plate caster with brake is load-rated up to 500 pounds. The mounting plate is 4 x 4 1/2 inches, with an outside bolt hole spacing of 2 5/8 x 3 5/8 inches, and a 3/8-inch mounting bolt diameter. The polyolefin wheel is 2 inches wide, 6 inches in diameter, and the wheel replacement number is 4-6-819.
Made for medium to heavy industrial and warehouse jobs, this durable caster is built to carry loads up to 600 pounds. This swivel caster comes with a brake system and a five-inch diameter phenolic wheel with a tread width of 1 1/2-inch. The mounting plate measures four inches long and 4 1/2 inches wide with a 3/8-inch bolt diameter.
Made for medium to heavy industrial and warehouse jobs, this durable caster is built to carry loads up to 600 pounds. This swivel caster comes with a brake system and a five-inch diameter phenolic wheel with a tread width of 1 1/2-inch. The mounting plate measures four inches long and 4 1/2 inches wide with a 3/8-inch bolt diameter.
Recommended for most warehouse and industrial jobs, this heavy-duty caster can manage a load of 400 pounds. This caster has a 1 1/2-inch wide, five-inch diameter phenolic wheel resistant to oil, chemicals, and extreme temperatures. The mounting plate measures 3 3/4 inches long and 4 3/8-inch wide with a 3/8-inch bolt diameter.
Recommended for most warehouse and industrial jobs, this heavy-duty caster can manage a load of 400 pounds. This caster has a 1 1/2-inch wide, five-inch diameter phenolic wheel resistant to oil, chemicals, and extreme temperatures. The mounting plate measures 3 3/4 inches long and 4 3/8-inch wide with a 3/8-inch bolt diameter.
Use this swivel caster for loads at a maximum of 400 pounds. This medium-duty caster has a brake mechanism for added control. The two-inch wide, four-inch diameter Performa rubber wheel allows for a quiet, impact-resistant roll while staying durable and resistant against water, debris and other chemicals. The mounting plate measures four inches long and 4 1/2 inches wide with a bolt diameter of 3/8 inches, three inches long and 3 5/8 inches wide.
Use this swivel caster for loads at a maximum of 400 pounds. This medium-duty caster has a brake mechanism for added control. The two-inch wide, four-inch diameter Performa rubber wheel allows for a quiet, impact-resistant roll while staying durable and resistant against water, debris and other chemicals. The mounting plate measures four inches long and 4 1/2 inches wide with a bolt diameter of 3/8 inches, three inches long and 3 5/8 inches wide.
This rigid caster is load-rated to 400 pounds and has a 4 x 4 1/2-inch mounting plate. The outside bolt hole spacing is 2 5/8 x 3 5/8 inches, with a 3/8-inch mounting bolt diameter. The Performa wheel is two inches wide and four inches in diameter. The replacement wheel number is 5-4-459-2.
This rigid caster is load-rated to 400 pounds and has a 4 x 4 1/2-inch mounting plate. The outside bolt hole spacing is 2 5/8 x 3 5/8 inches, with a 3/8-inch mounting bolt diameter. The Performa wheel is two inches wide and four inches in diameter. The replacement wheel number is 5-4-459-2.
This swivel plate caster has a wheel measuring 2 x 4 inches. The mounting plate is 4 x 4 1/2 inches and the mounting bolt diameter is 3/8 inches. This caster features durable urethane wheels and a load rating of 600 pounds. Use item number 5-4-929 for replacement wheels.
This swivel plate caster has a wheel measuring 2 x 4 inches. The mounting plate is 4 x 4 1/2 inches and the mounting bolt diameter is 3/8 inches. This caster features durable urethane wheels and a load rating of 600 pounds. Use item number 5-4-929 for replacement wheels.
This swivel plate caster features a 2 x 8-inch soft-tread Performa rubber wheel. The mounting plate is 4 x 4 1/2 inches and the mounting bolt diameter is 3/8 inches. This caster has a load rating of 675 pounds. Use item number 5-8-459-2 for replacement wheels.
This swivel plate caster features a 2 x 8-inch soft-tread Performa rubber wheel. The mounting plate is 4 x 4 1/2 inches and the mounting bolt diameter is 3/8 inches. This caster has a load rating of 675 pounds. Use item number 5-8-459-2 for replacement wheels.
This swivel plate caster features a Performa rubber wheel measuring 1 1/2 x 8 inches. The mounting plate is 4 x 4 1/2 inches and the mounting bolt diameter is 3/8 inches. This caster has a wheel brake and a load rating of 500 pounds. Use item number 4-8-449 for replacement wheels.
This swivel plate caster features a Performa rubber wheel measuring 1 1/2 x 8 inches. The mounting plate is 4 x 4 1/2 inches and the mounting bolt diameter is 3/8 inches. This caster has a wheel brake and a load rating of 500 pounds. Use item number 4-8-449 for replacement wheels.
Load-rated to 800 pounds, this swivel caster has a 4 x 4 1/2-inch mounting plate, and 3/8-inch mounting bolt diameter. The phenolic wheel is 1 1/2 inches wide and six inches in diameter. Replacement wheels can be ordered using number 4-6-319.
Load-rated to 800 pounds, this swivel caster has a 4 x 4 1/2-inch mounting plate, and 3/8-inch mounting bolt diameter. The phenolic wheel is 1 1/2 inches wide and six inches in diameter. Replacement wheels can be ordered using number 4-6-319.
Use this swivel caster for loads at a maximum of 600 pounds. This medium-duty caster has a brake mechanism for added control with a two-inch wide, four-inch diameter polyurethane wheel. The mounting plate measures four inches long and 4 1/2 inches wide with a bolt diameter of 3/8 inches.
Use this swivel caster for loads at a maximum of 600 pounds. This medium-duty caster has a brake mechanism for added control with a two-inch wide, four-inch diameter polyurethane wheel. The mounting plate measures four inches long and 4 1/2 inches wide with a bolt diameter of 3/8 inches.

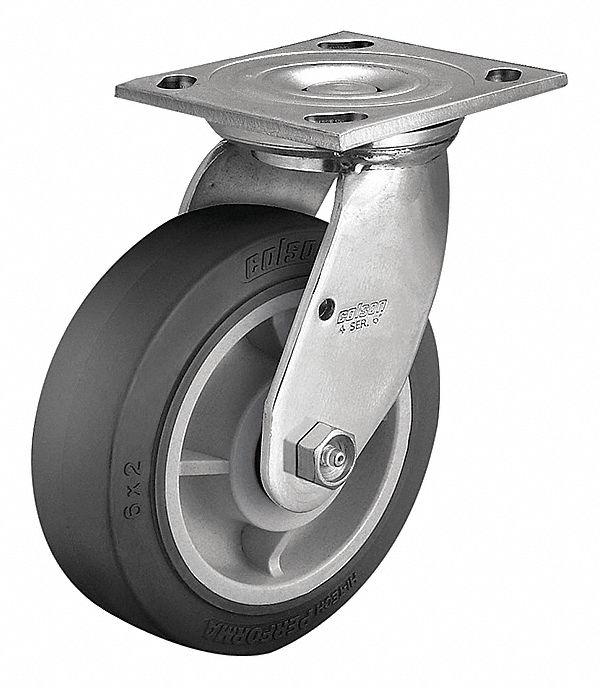

This swivel caster with brake has a 4 x 4 1/2-inch mounting plate, and a load rating of 600 pounds. The mounting bolt diameter is 3/8 inches. The Performa wheel is two inches wide and six inches in diameter. The replacement wheel number is 5-6-459-2
This swivel caster with brake has a 4 x 4 1/2-inch mounting plate, and a load rating of 600 pounds. The mounting bolt diameter is 3/8 inches. The Performa wheel is two inches wide and six inches in diameter. The replacement wheel number is 5-6-459-2
