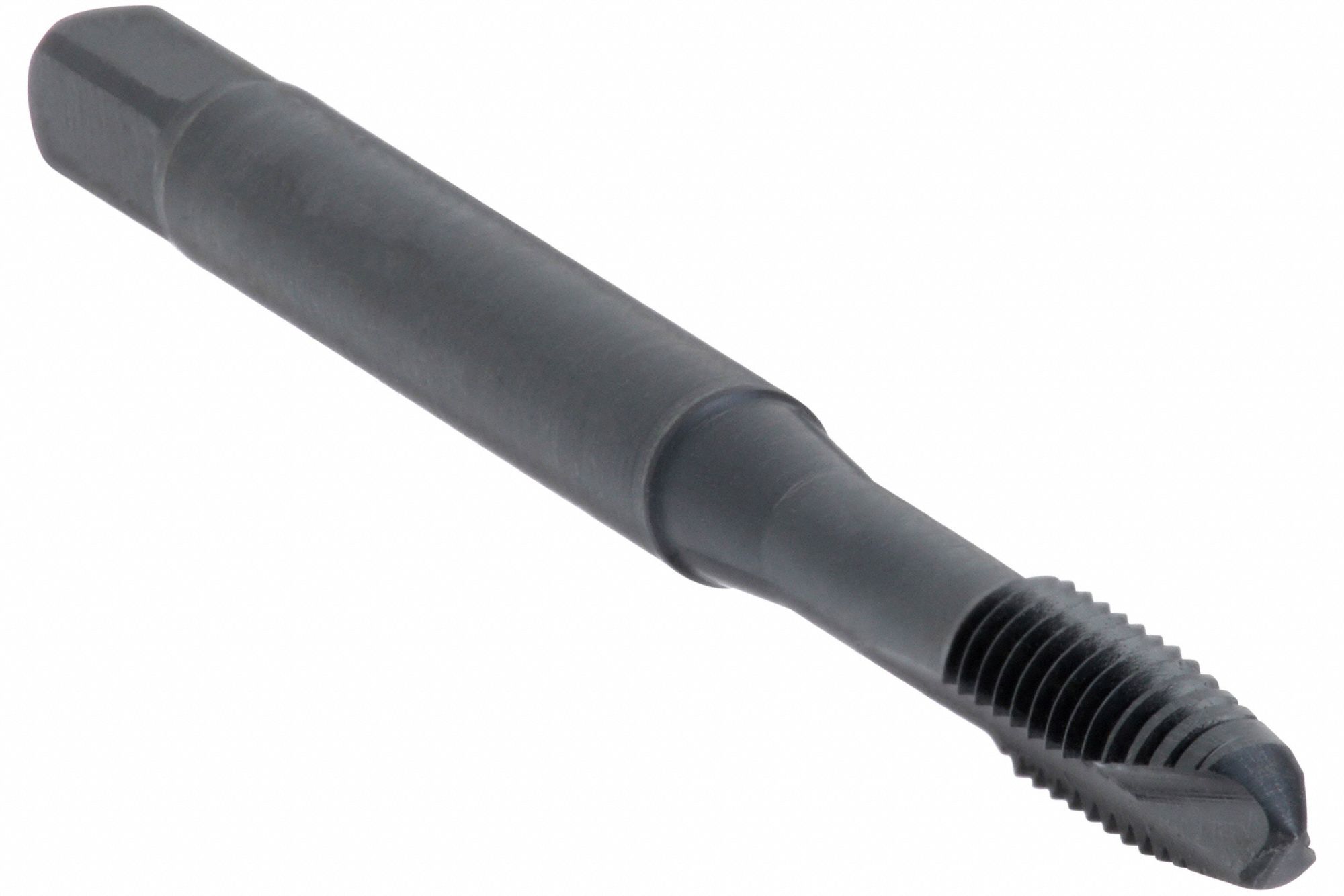

SPIRAL POINT TAP, M6X1 THREAD, 16MM THREAD L, 63.5MM OVERALL L, PLUG, HSS-E

SPIRAL POINT TAP, M6X1 THREAD, 16MM THREAD L, 63.5MM OVERALL L, PLUG, HSS-E

WIDIA PRODUCTS GROUP

SPIRAL POINT TAP, M6X1 THREAD, 16MM THREAD L, 63.5MM OVERALL L, PLUG, HSS-E close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
SPIRAL POINT TAP, M6X1 THREAD, 16MM THREAD L, 63.5MM OVERALL L, PLUG, HSS-E

SPIRAL POINT TAP, M6X1 THREAD, 16MM THREAD L, 63.5MM OVERALL L, PLUG, HSS-E

WIDIA PRODUCTS GROUP

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $35.67 / EACH

EHC: EHC :
Min Qty 6 = $214.02

Compliance and Restrictions

  • None

This product must be purchased in multiples of 6 . Please update the quantity to proceed with checkout.
Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # WID5362703
  • Mfr. Model # 5362703
  • UNSPSC # 23241615
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.01 lbs

Product Details

This WP49EG tap is made of vanadium high speed steel and has a 0.255 inch diameter, 38.10mm long shank. It is designed for use with cast iron, steel, and meets the standards for ANSI. This VT-SPO series tap has a black oxide finish, and has metric measurements. It is non-coolant through, has right hand direction with a 2½ inch length. Plus it has three flutes and a straight shank.

Technical Specs

  • ItemTap
  • Thread StandardMetric Coarse
  • Tap FinishBlack Oxide
  • Overall Length2.5 in
  • Thread LimitD5
  • Number of Flutes3
  • 55% Thread Drill Size5.25 mm
  • Coolant FedNon-Coolant Through
  • Material Grade - MachiningWP49EG
  • Primary Material Application ISO CodeK, M, P
  • Shank Dia.0.255 in
  • Shank Type - MachiningStraight
  • Square Size4.80 mm
  • Tap ChamferPlug
  • Helix Angle0 Degrees
  • Thread Size M6x1.00
  • Tap Material Vanadium High Speed Steel
  • Thread Length 15.87 mm
  • 75% Thread Drill Size 5.00 mm
  • Thread Direction Right Hand
  • Primary Material Application Cast Iron, Stainless Steel, Steel
  • 65% Thread Drill Size 13/64 in
  • Extended Neck Yes
  • Measurement System Metric
  • Series VT-SPO
  • Shank Length 38.10 mm
  • Spiral Direction Neutral
  • Standards ANSI
  • Tap Grouping Tap
  • Tap Style Spiral Point
  • Country of Origin United States (subject to change)

Compliance and Restrictions

  • None
