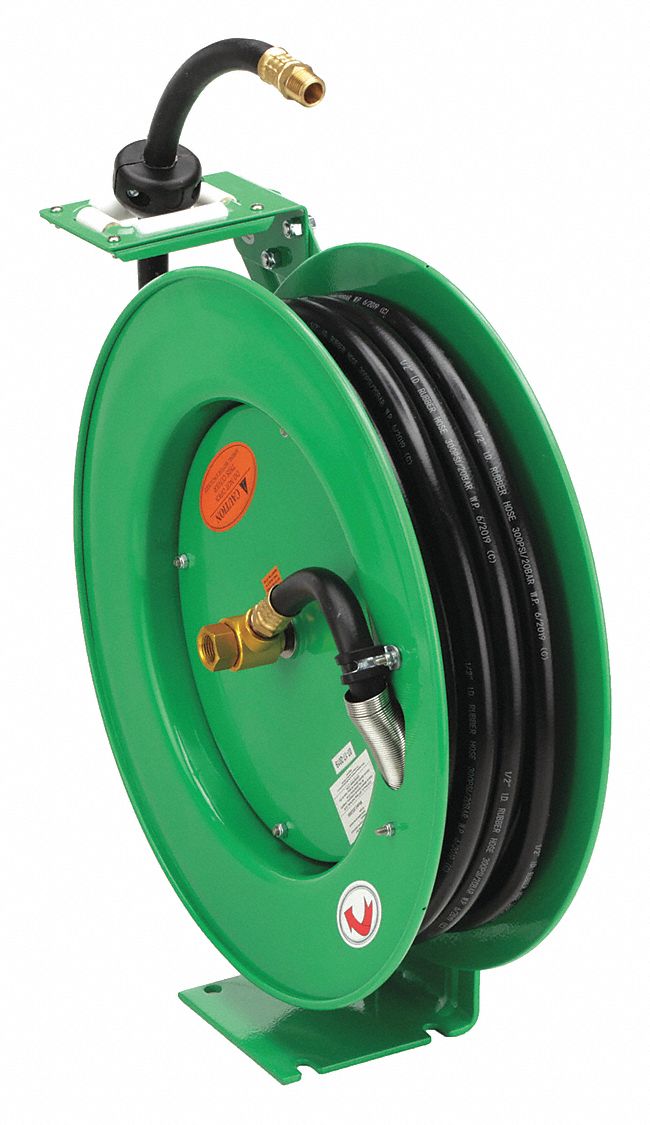

SPRING RETURN HOSE REEL: 50 FT (½ IN I.D.), ½ IN MNPT, 300 PSI MAX, BRASS, GREEN

SPRING RETURN HOSE REEL: 50 FT (½ IN I.D.), ½ IN MNPT, 300 PSI MAX, BRASS, GREEN

SPEEDAIRE

SPRING RETURN HOSE REEL: 50 FT (½ IN I.D.), ½ IN MNPT, 300 PSI MAX, BRASS, GREEN close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
SPRING RETURN HOSE REEL: 50 FT (½ IN I.D.), ½ IN MNPT, 300 PSI MAX, BRASS, GREEN

SPRING RETURN HOSE REEL: 50 FT (½ IN I.D.), ½ IN MNPT, 300 PSI MAX, BRASS, GREEN

SPEEDAIRE

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $521.56 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # SDR2CUA9
  • Mfr. Model # 2CUA9
  • UNSPSC # 24102008
  • CATALOGUE PAGE # 1589
  • Shipping Weight 52.0 lbs

Product Details

Hose Reel, Low Pressure (Air/Water), Spring Return Drive Type, Reel Inlet 1/2 In. (F)NPT, Hose Inside Dia. 1/2 In., Hose Length 50 ft., Hose Ends 1/2 In. (M)NPT, Max. Pressure (PSI) 300, Max. Temp. (F) 210, Coated Finish, Permanently Lubricated Bearings, Vibrationproof, Self Locking Latch, Buna N Seal Type, Copper Swivel Material, Floor, Wall, Ceiling, Bench and Truck Mounting, Height 22-1/2 In., Length 20-5/8 In., Width 8-7/8 In., Hose Material Rubber, Hose Included Y

Technical Specs

  • ItemSpring Return Hose Reel
  • Maximum Operating Pressure300 psi
  • Drive TypeSpring Return
  • Includes HoseHose Included
  • Hose Length50 ft
  • Mounting LocationCeiling, Floor, Wall
  • Overall Height22 1/2 in
  • Overall Width7 in
  • For Dual HoseNot For Dual Hose
  • Hose Cover MaterialRubber
  • Hose Fitting A MaterialBrass
  • Hose Fitting A TypeNPT
  • Hose Fitting B Size1/2 in
  • Hose Outside Dia.7/8 in
  • Hose Tube MaterialRubber
  • Number of Guide ArmsSingle Arm
  • Reel ColourGreen
  • Swivel Inlet TypeNPT
  • Swivel Outlet Thread Size1/2 in
  • Swivel Inlet GenderFemale
  • Reel Width4 3/4 in
  • Weight39.82 lb
  • Bearing ConstructionPermanently Lubricated
  • Fasteners IncludedFasteners Not Included
  • Includes Hose StopHose Stop Included
  • Minimum Operating Temperature-4 Degrees F
  • Mount Base Width5 29/32 in
  • Mounting Hole Center to Center Height5 in
  • Reel Diameter19 5/16 in
  • Hose End Configuration1/2 in MNPT
  • Hose Reel Primary Application Air, Water
  • Hose Capacity 50 ft (1/2 in ID)
  • Enclosed Not Enclosed
  • Hose Inside Dia. 1/2 in
  • Reel Material Steel
  • Speed Limited Retraction No Speed Limited Retraction
  • Overall Length 19 5/16 in
  • Corrosion-Resistant Corrosion-Resistant
  • Hose Colour Black
  • Hose Fitting A Gender Male
  • Hose Fitting A Size 1/2 in
  • Hose Fitting B Gender Male
  • Hose Fitting B Type NPT
  • Hose Reel Type Wall Mount Hose Reel
  • Base Motion Type Stationary
  • Number of Mount Holes 4
  • Swivel Material Brass
  • Swivel Outlet Gender Female
  • Swivel Outlet Type NPT
  • Swivel Inlet Thread Size 1/2 in
  • Reel Finish Powder Coated
  • Latch Type Locking
  • Maximum Operating Temperature 140 Degrees F
  • Spiral Hose Guard No Spiral Hose Guard
  • Includes Leader Hose Leader Hose Not Included
  • Mount Base Height 5 45/64 in
  • Mounting Hole Center to Center Width 4 in
  • Mount Hole Diameter 1/2 in
  • Includes Hose
  • Country of Origin China (subject to change)
