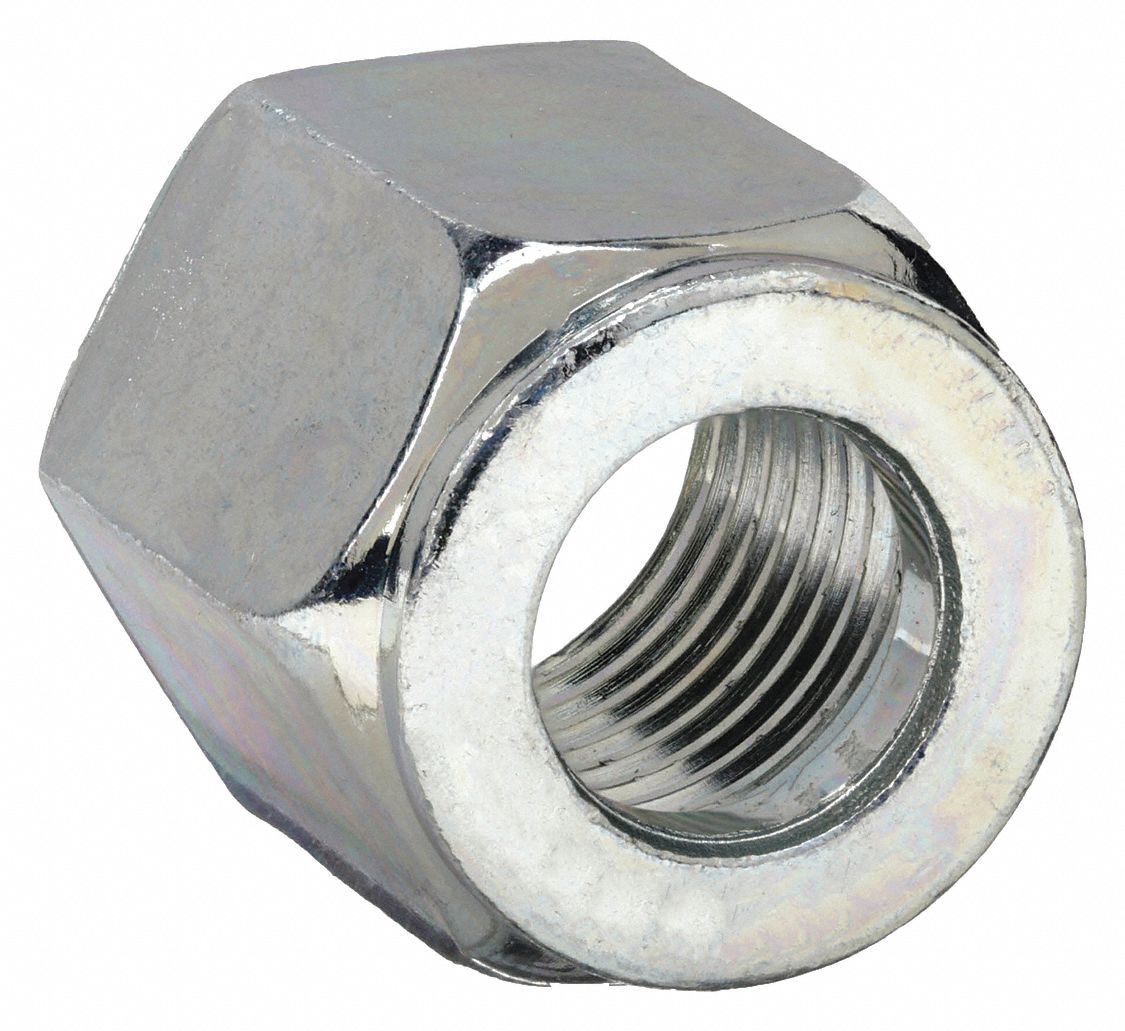

NUT: COMPRESSION, FOR ¼ IN TUBE OD, 500 ° F MAX OP TEMP, 23/32 IN L, ZINC PLATED STEEL

NUT: COMPRESSION, FOR ¼ IN TUBE OD, 500 ° F MAX OP TEMP, 23/32 IN L, ZINC PLATED STEEL

PARKER

NUT: COMPRESSION, FOR ¼ IN TUBE OD, 500 ° F MAX OP TEMP, 23/32 IN L, ZINC PLATED STEEL close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
NUT: COMPRESSION, FOR ¼ IN TUBE OD, 500 ° F MAX OP TEMP, 23/32 IN L, ZINC PLATED STEEL

NUT: COMPRESSION, FOR ¼ IN TUBE OD, 500 ° F MAX OP TEMP, 23/32 IN L, ZINC PLATED STEEL

PARKER

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $3.52 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # DYE4BU-S
  • Mfr. Model # 4 BU-S
  • UNSPSC # 40142317
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.03 lbs

Product Details

This Ferulok series nut meets the standards for SAE J514, has a length of 23/32 inch, and is designed for the following applications: fluids, gases. It has an operating temperature of 65 Degrees F to 500 Degrees F, is made of steel with a zinc-plated finish/coating. In addition, it is a nut, with an imperial system of measurement, and 7/16"-20 thread. Plus, it has a compression connection type and 9/16 inch hex size.

Technical Specs

  • ItemNut
  • Finish/CoatingZinc-Plated
  • Maximum Operating Temperature500 Degrees F
  • Thread Size7/16"-20
  • System of MeasurementImperial
  • SeriesFerulok
  • Fitting Connection TypeCompression
  • Minimum Operating Temperature65 Degrees F
  • Application Fluids, Gases
  • Fitting Material Steel
  • Overall Length 23/32 in
  • Specific Fitting Shape Nut
  • Compatible Tube Outer Diameter 1/4 in
  • Standards SAE J514
  • Hex Size 9/16 in
  • Country of Origin Taiwan (subject to change)

Compliance and Restrictions

  • None
