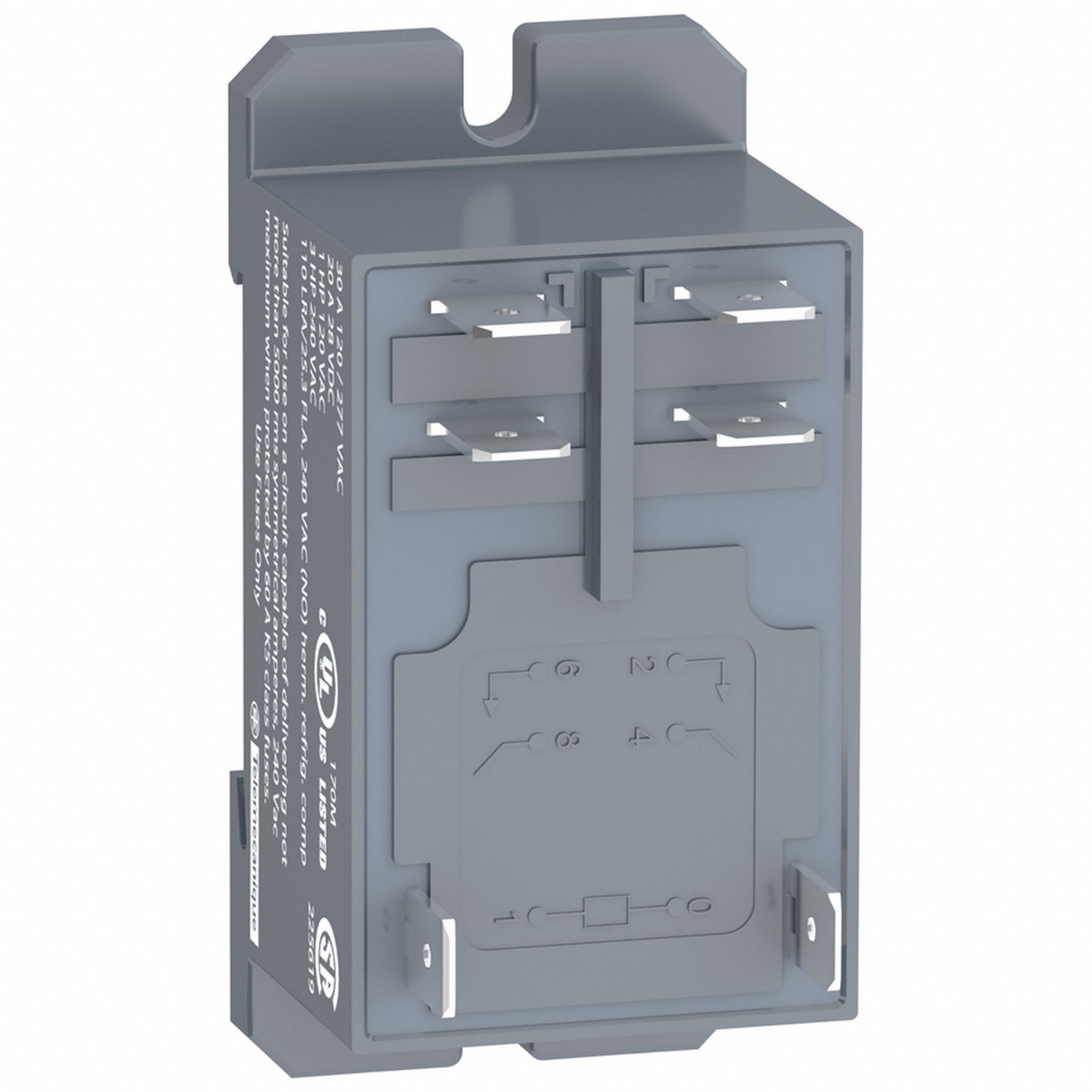

ENCLOSED POWER RELAY, DIN-RAIL AND SURFACE MOUNTED, 30 A CURRENT RATING, 230V AC, DPST-NO

ENCLOSED POWER RELAY, DIN-RAIL AND SURFACE MOUNTED, 30 A CURRENT RATING, 230V AC, DPST-NO

SQUARE D

ENCLOSED POWER RELAY, DIN-RAIL AND SURFACE MOUNTED, 30 A CURRENT RATING, 230V AC, DPST-NO close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
ENCLOSED POWER RELAY, DIN-RAIL AND SURFACE MOUNTED, 30 A CURRENT RATING, 230V AC, DPST-NO

ENCLOSED POWER RELAY, DIN-RAIL AND SURFACE MOUNTED, 30 A CURRENT RATING, 230V AC, DPST-NO

SQUARE D

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $45.55 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # SQDRPF2AP7
  • Mfr. Model # RPF2AP7
  • UNSPSC # 39121514
  • CATALOGUE PAGE # 62
  • Shipping Weight 0.17 lbs

Product Details

This Harmony RPF Power Series relay has an operating temperature range of -40 Degrees F to 131 Degrees F with a DPST-NO contact form. It is for use with: Hard-Wired Logic Automated Systems. In addition, it has 6 pins, and 20 A @ 28V (NO), 25 A @ 28V (NO) DC, 230V AC coil voltage and 4 VA power consumption and 1/4-inch tab terminal electrical connection. Plus it is 1.38 inch body D, a 30 A current rating, a square base, and 25 msec response time.

Technical Specs

  • ItemRelay
  • Coil Voltage230V AC
  • Current Rating30 A
  • Flat Pin Width0.25 in
  • SealingSealed
  • Contact Rating (AC)30 A @ 250/277V (NO)
  • Horsepower @ 120V AC1 hp
  • Mounting StyleDIN Rail & Top Flange
  • Body Depth1.38 in
  • Body Width1.33 in
  • Electrical Operating Durability100,000
  • Maximum Operating Temperature131 Degrees F
  • Minimum Operating Temperature-40 Degrees F
  • Power Consumption4 VA
  • SeriesHarmony(TM) RPF Power Series
  • Base Shape Square
  • Contact Form DPST-NO
  • Electrical Connection 1/4 in Tab Terminal
  • Number of Pins 6
  • Status Indicator No Indicator
  • Contact Rating (DC) 20 A @ 28V (NO), 25 A @ 28V (NO)
  • Horsepower @ 240V AC 3 hp
  • Push-To-Test Method No Button
  • Body Height 2.7 in
  • Dielectric Strength 1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 4,000V AC Between Coil and Contact with Reinforced
  • For Use With Hard-Wired Logic Automated Systems
  • Mechanical Operating Durability 5,000,000
  • Operating Current 20 A @ 28V DC (NO UL), 25 A @ 28V DC (NO IEC), 30 A @ 250V AC (NO IEC), 30 A @ 77V AC (NO UL)
  • Response Time 25 msec
  • Country of Origin China (subject to change)
