PEX BALL VALVE 3/4 X 3/4 LEAD FREE
PEX BALL VALVE 3/4 X 3/4 LEAD FREE
FAIRVIEW
close
close x
images.360.info.textHead1
360°
images.360.info.textHead2
Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
Zoom In: Double click on image.
Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Product Details

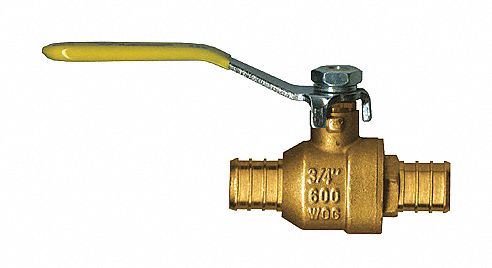

This PEX ball valve has a two-piece valve and an inline body style. It has a PEX to female sweat connection, a blowout-proof stem made of brass, and a tube size of 3/4 x 3/4 inches. The maximum pressure is 400 PSI WOG, and the temperature range is -65℉ to 250℉ and -54C to 120C. This ball valve has a lever handle made of steel and a body made of brass.
Technical Specs
Item Brass PEX Union Ball Valves
Body Style In Line
Connection Type PEX to PEX
Max. Pressure 400 PSI WOG
Ball Material Chrome-Plated Brass
Stem Type Blowout Proof
Handle Material Steel (Corrosion-Resistant Plating)
Body Seal Material Viton
Standards ASME A112.18.1, CSA N125.1, CSA B125.3, NSF, ANSI 372, NSF 14, NSF 61, ASTM F1807, CSA B137.5, UP CODE, ASTM B124, ASTM B249, ASTM B283, ASTM F1807, ASTM B858, ASTM F1807, GB, T 8000-2001
Body Material Brass
Valve Structure 2 Piece
Port Full
Temp. Range -65 Degrees F - 250 Degrees F, -54 Degrees C - 120 Degrees C
Seat Material PTFE
Handle Type Lever
Stem Material Brass
Valve Basic Body Material Low Lead Brass
Country of Origin China
(subject to change)
