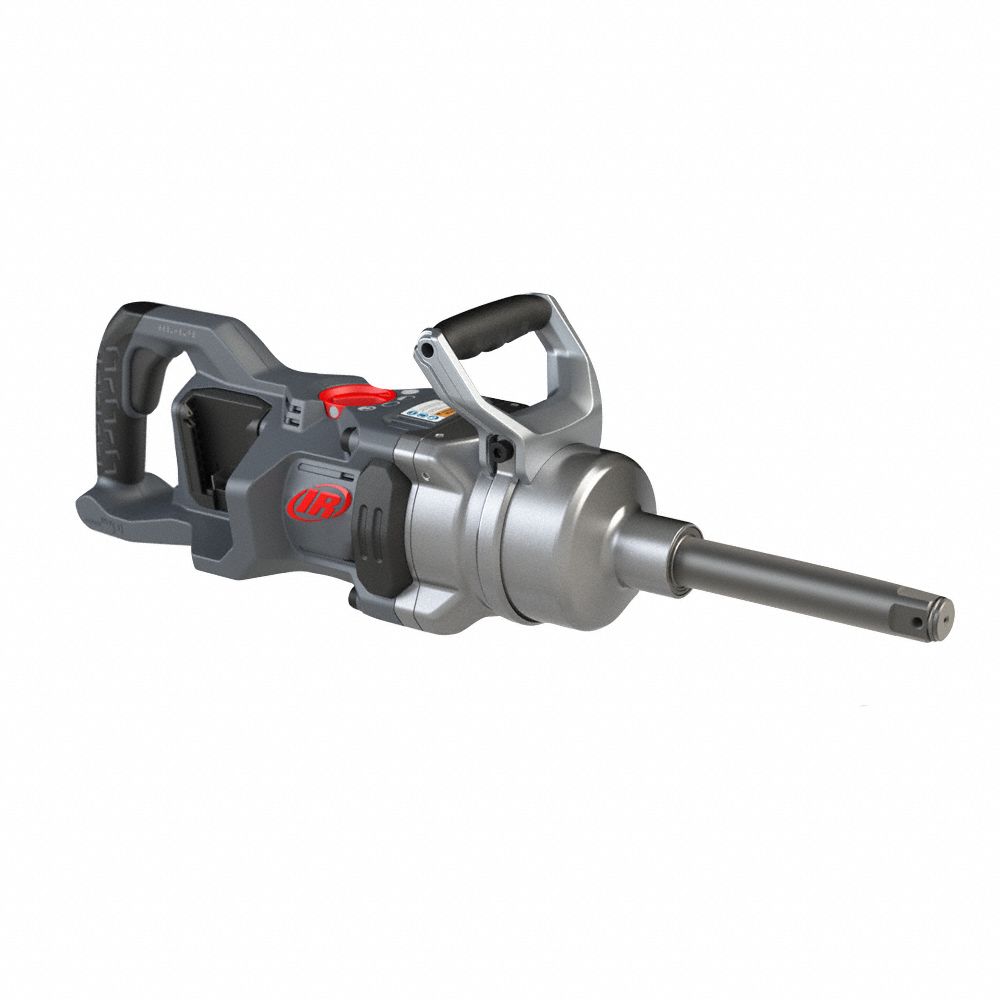

This IQV20 cordless impact wrench operates on two 20V DC lithium-ion batteries with a 5.0 Ah battery capacity. It has a one-inch friction ring standard square drive, a D-handle, four-speed settings, a free speed of 890 RPM, 1170 IPM, nut-busting torque of 3000 ft-lb, and full-forward torque of 2200 ft-lb. The wrench features 360 degree auxiliary handle.
Technical Specs
ItemImpact Wrench
Power SourceCordless
Brushless MotorYes
Fastening Torque180 ft-lb, 400 ft-lb, 2,200 ft-lb
Max. Torque3,000 ft-lb
Impact RatedNo
Explosive Environment RatedNo
Drive Size1 in Square
Drive TypeStandard
Number of Batteries Included0
Battery Model No.BL2022
Charger IncludedNo
Case IncludedNo
Handle MaterialComposite
Tool StyleFull-Size
ActuationTrigger
Number of Speed Settings4
Wireless Tracking SystemNo
Features3,000 ft-lbs of Nut Busting Torque and 2,200 ft-lbs of Tightening Torque, Ergonomic D-Handle Design with 360 Degree Auxiliary Handle and Protected IQV 20 Battery Configuration, Four Power Control Modes with Two Featuring Automatic Shut-Off (At 180 ft-lbs and 400 ft-lbs), High Torque Battery Leverages Existing IQV 20 Battery Platform That Can Do Up To 250 Fasteners Per Charge
SeriesW9000
Tool Weight25.9 lb
Cordless Tool Kit Contents(1) Bare Tool
Voltage20V DC
Breakaway Torque3,000 ft-lb
Free Speed890 RPM
Power to Weight Ratio103 ft-lb
Impacts per Minute1.170
Retainer TypeFriction Ring
Drive StyleExtended
Extended Anvil Length6 in
Battery Capacity(2) 5.0 Ah
Battery SeriesIQV20
Charger ModelBC1221
Handle TypeD-Handle
Housing MaterialAluminum, Composite, Steel
Clutch StyleBall and Cam
Lock-Off SwitchNo
Wireless Tool TrackingNo
Built-In LightNo
Tool BrandIngersoll Rand(R)
StandardsUL Listed, CSA Certified
Overall Length26 1/8 in
Country of OriginUnited States
(subject to change)
