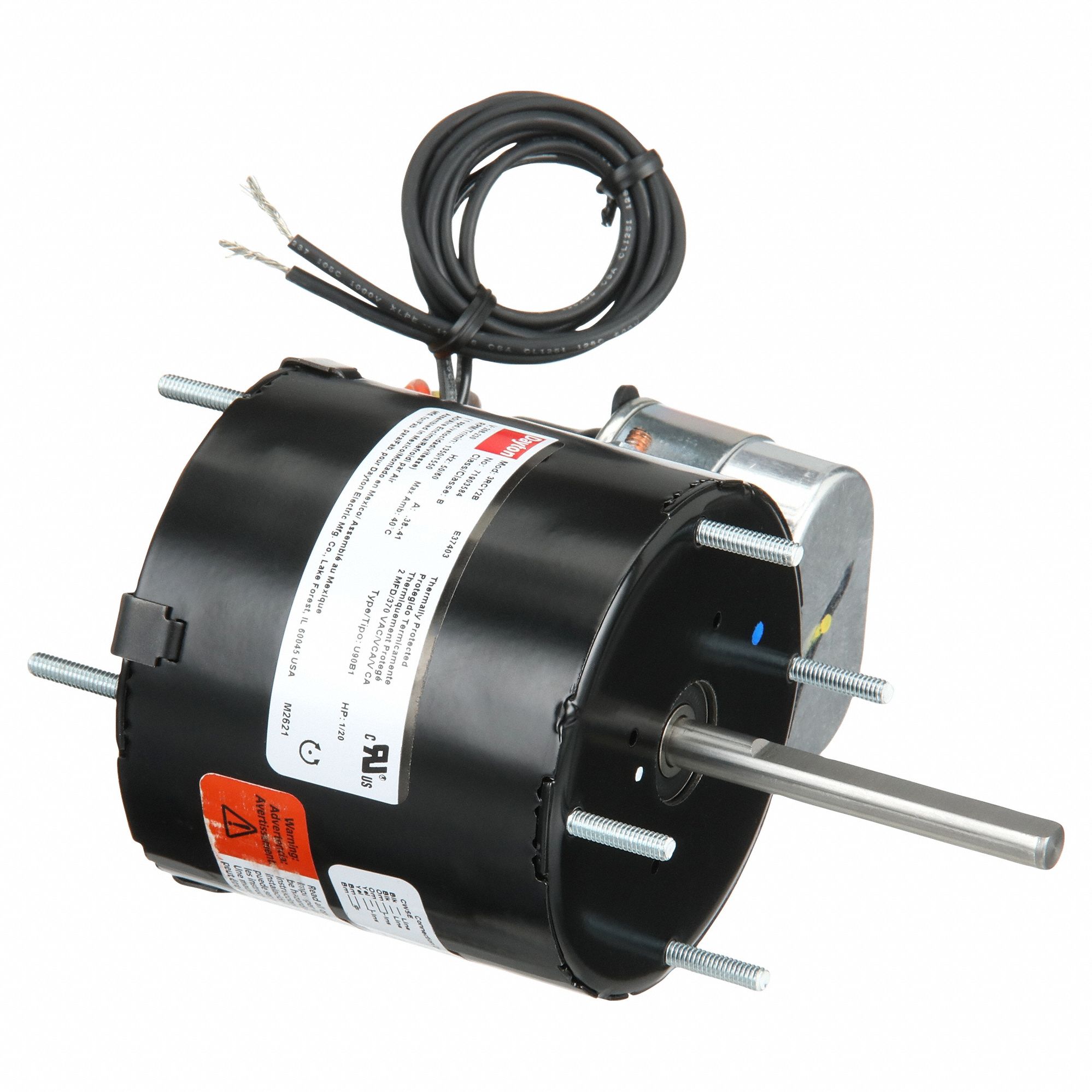

HAC MOTOR PSC 1/20 HP 1550 208-230V
HAC MOTOR PSC 1/20 HP 1550 208-230V
DAYTON
close
close x
images.360.info.textHead1
360°
images.360.info.textHead2
- Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
- Zoom In: Double click on image.
- Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
360°
Product Details
1/20 HP,1,550 Nameplate RPM,208-230 Voltage,Full Load Amps 0.37-0.32,Rotation CW/CCW,Shaft Dia. 5/16 po
Technical Specs
- ItemHVAC Motor
- Nameplate RPM1,550 RPM
- Voltage208-230V AC
- Frame3.3
- Shaft Dia.5/16 in
- Motor Thermal ProtectionAuto
- Max. Ambient Temp.40 Degrees C
- Includes3 MFD 370V AC Capacitor
- Motor DesignPermanent Split Capacitor
- Motor Enclosure DesignTotally Enclosed Air Over
- PhaseSingle
- Ins. ClassB
- Capacitor RequiredCapacitor Included
- Duty CycleContinuous
- Motor Shaft DesignFlat
- Mounting Stud Pattern2 in x 2 in
- StandardsCSA Certified (244617), UL Recognized (E37403)
- Usable @ 208VUsable at 208V
- HP 1/20 hp
- No. of Speeds 1
- Motor Shaft Rotation CW/CCW
- Motor Mounting Type Stud
- Shaft Length 2 1/2 in
- Motor Bearings Ball
- Full Load Amps 0.4 to 0.3 A
- Length Less Shaft 3 11/16 in
- Motor Sub Application Direct Drive Fan/Blower
- Motor Mounting Position All Angle
- Motor Service Factor 1
- Body Dia. 3 5/16 in
- Cord Length 20 in
- Hz 60/50 Hz
- Mounting Stud Location Both Ends
- Number of Shafts 1
- Usable @ 200V Not Usable at 200V
- Country of Origin China
(subject to change)
