Crimp Hydraulic Hose Fittings with JIC Connection

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 3,000 psi @ 70 Degrees F and is made of steel. In addition, it has a 1⅝"-12 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 3,000 psi @ 70 Degrees F and is made of steel. In addition, it has a 1⅝"-12 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 5,000 psi @ 70 Degrees F and is made of steel. In addition, it has a ¾"-16 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 5,000 psi @ 70 Degrees F and is made of steel. In addition, it has a ¾"-16 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

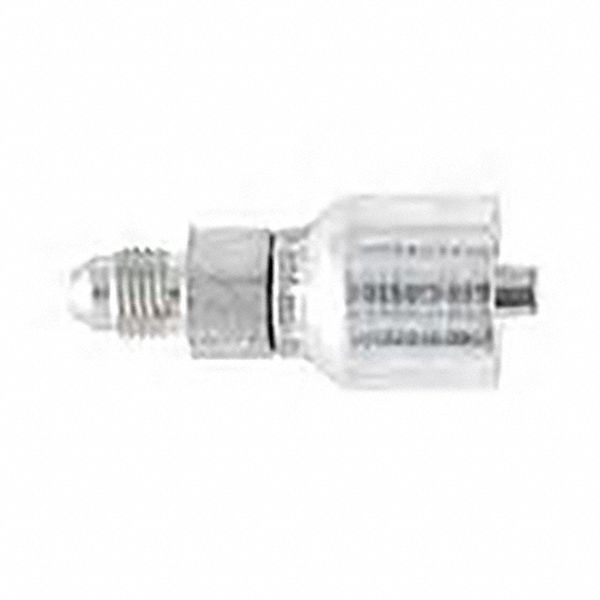

Use this straight, long male connector for leak-free connections with your high-pressure applications. Hose fitting A is male with a 1/4"-18 thread size and a NPFT connection type. Hose fitting B has a 7/16"-20 thread size and a 37 Degrees Flare connection type. This connector has an overall length of 2.25 inches and conforms to SAE standards.

Use this straight, long male connector for leak-free connections with your high-pressure applications. Hose fitting A is male with a 1/4"-18 thread size and a NPFT connection type. Hose fitting B has a 7/16"-20 thread size and a 37 Degrees Flare connection type. This connector has an overall length of 2.25 inches and conforms to SAE standards.

Female connector, joining 1/2 inch 37 Degrees JIC flare with 1/4"-18 thread NPTF, and fitting into a tube end measuring 3/4"-16 thread UN/UNF-2A. This piece is engineered for use in all hydraulic fluid applications and has a 13/16 inch hex.

Female connector, joining 1/2 inch 37 Degrees JIC flare with 1/4"-18 thread NPTF, and fitting into a tube end measuring 3/4"-16 thread UN/UNF-2A. This piece is engineered for use in all hydraulic fluid applications and has a 13/16 inch hex.

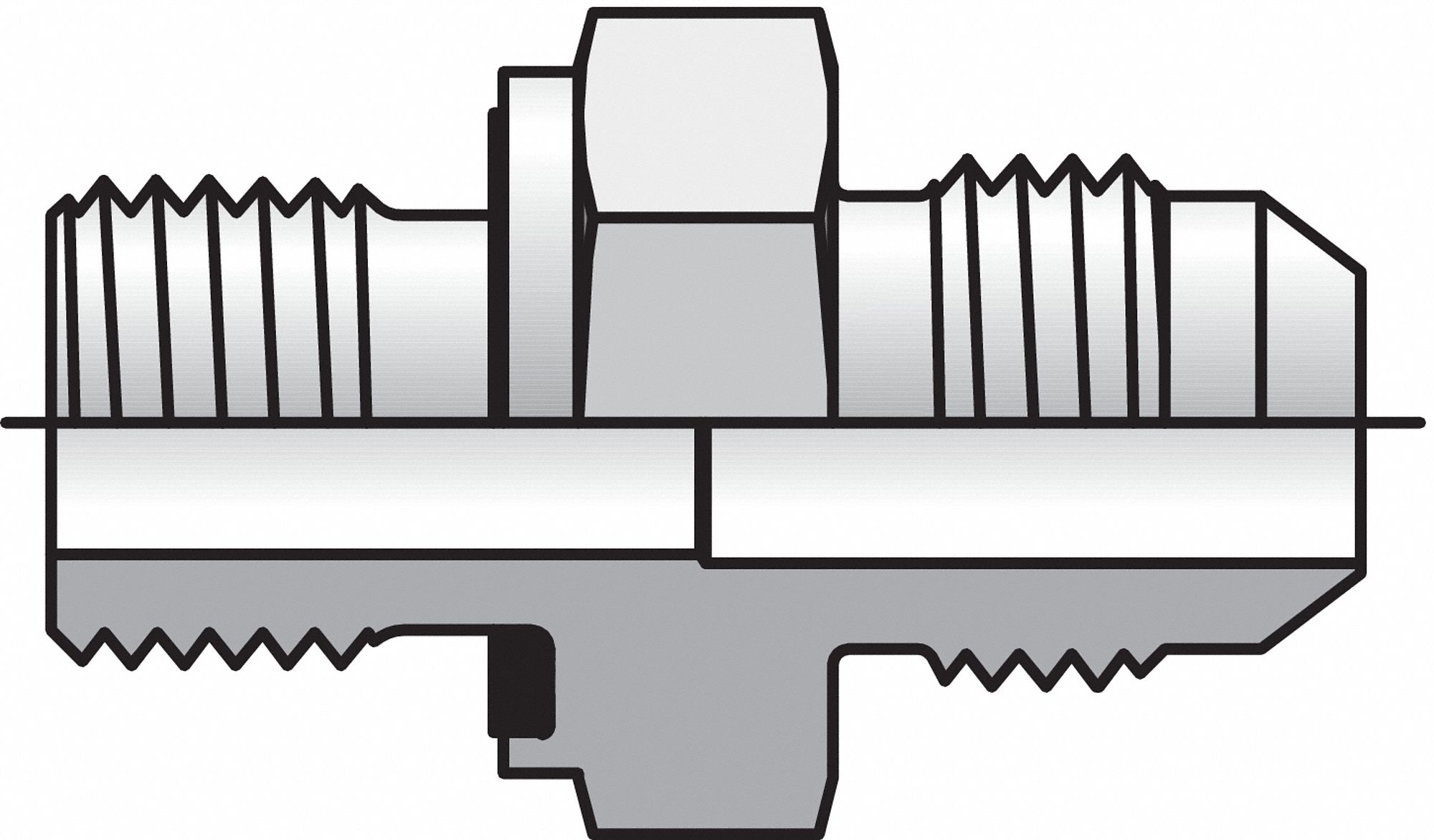

This adapter has a male British Standard Pipe Parallel (BSPP) to male Joint Industry Council (JIC) fitting and meets SAE J514 standards.

This adapter has a male British Standard Pipe Parallel (BSPP) to male Joint Industry Council (JIC) fitting and meets SAE J514 standards.

This adapter meets the standards for ASTM B117/ISO 9227, ISO 8434-2, SAE J514, has a length of 2.31 inch, a maximum operating pressure of 7,500 psi and is designed for the following applications: gas handling connections and hydraulic fluid. It is resistant to corrosion and is made of steel. In addition, it has a a 1 1/16"-12 thread. Plus, it has a 1½ inch, 1¼ inch hex size.

This adapter meets the standards for ASTM B117/ISO 9227, ISO 8434-2, SAE J514, has a length of 2.31 inch, a maximum operating pressure of 7,500 psi and is designed for the following applications: gas handling connections and hydraulic fluid. It is resistant to corrosion and is made of steel. In addition, it has a a 1 1/16"-12 thread. Plus, it has a 1½ inch, 1¼ inch hex size.

This bulkhead union elbow meets the standards for SAE 070701. In addition, it is a union elbow, and a 1 5/16"-12 thread. Plus, it has a 1⅝ inch hex size.

This bulkhead union elbow meets the standards for SAE 070701. In addition, it is a union elbow, and a 1 5/16"-12 thread. Plus, it has a 1⅝ inch hex size.

This bulkhead union elbow meets the standards for SAE 070701. In addition, it is a union elbow, and 9/16"-18 thread. Plus, it has a 13/16 inch hex size.

This bulkhead union elbow meets the standards for SAE 070701. In addition, it is a union elbow, and 9/16"-18 thread. Plus, it has a 13/16 inch hex size.

Use this straight, long male connector for leak-free connections with your high-pressure applications. Hose fitting A is male with a 1/8"-27 thread size and a NPFT connection type. Hose fitting B has a 7/16"-20 thread size and a 37 Degrees Flare connection type. This connector has an overall length of 1.81 inches and conforms to SAE standards.

Use this straight, long male connector for leak-free connections with your high-pressure applications. Hose fitting A is male with a 1/8"-27 thread size and a NPFT connection type. Hose fitting B has a 7/16"-20 thread size and a 37 Degrees Flare connection type. This connector has an overall length of 1.81 inches and conforms to SAE standards.

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 6,000 psi @ 70 Degrees F and is made of steel. In addition, it has a 7/16"-20 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 6,000 psi @ 70 Degrees F and is made of steel. In addition, it has a 7/16"-20 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 5,000 psi @ 70 Degrees F and is made of steel. In addition, it has a 9/16"-18 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 5,000 psi @ 70 Degrees F and is made of steel. In addition, it has a 9/16"-18 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

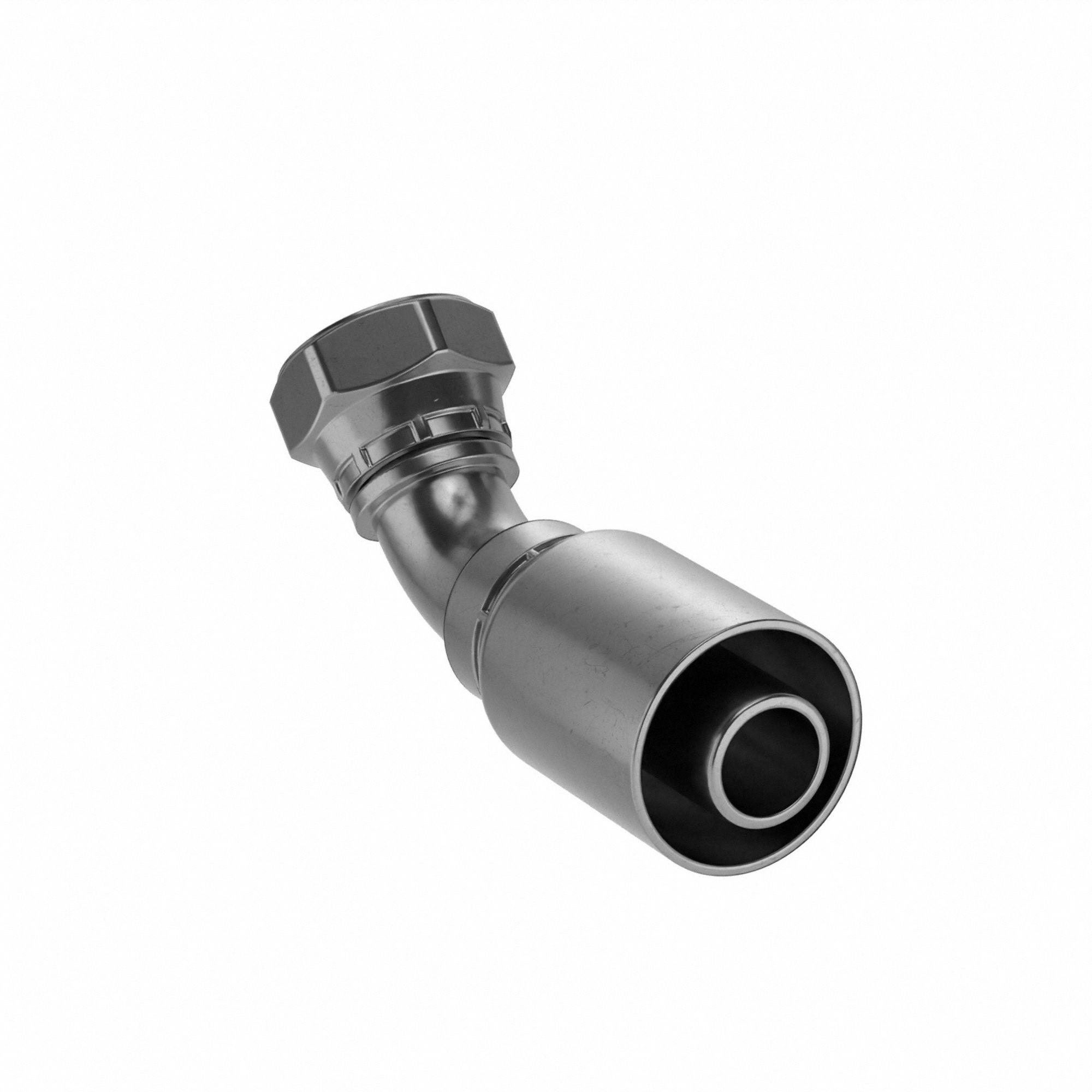

Permanent crimp hydraulic coupling. Style 13743. Female JIC 37 degree swivel - 45 degree elbow - short drop.

Permanent crimp hydraulic coupling. Style 13743. Female JIC 37 degree swivel - 45 degree elbow - short drop.

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 5,000 psi @ 70 Degrees F and is made of steel. In addition, it has a 1 1/16"-12 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

This hydraulic crimp fitting meets the standards for SAE 100 R2, has a maximum operating pressure of 5,000 psi @ 70 Degrees F and is made of steel. In addition, it has a 1 1/16"-12 thread. Plus, it has a JIC x Crimp connection type. This hydraulic crimp fitting is for use on 301LT, 302, 304, 351ST, 351TC, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 722TC, 881 series hoses.

This straight-thread connector has a male British Standard Pipe Parallel (BSPP) fitting to male Joint Industry Council (JIC) fitting.

This straight-thread connector has a male British Standard Pipe Parallel (BSPP) fitting to male Joint Industry Council (JIC) fitting.

Install this 90 degrees swivel elbow adapter with a JIC male to female fitting.

Install this 90 degrees swivel elbow adapter with a JIC male to female fitting.

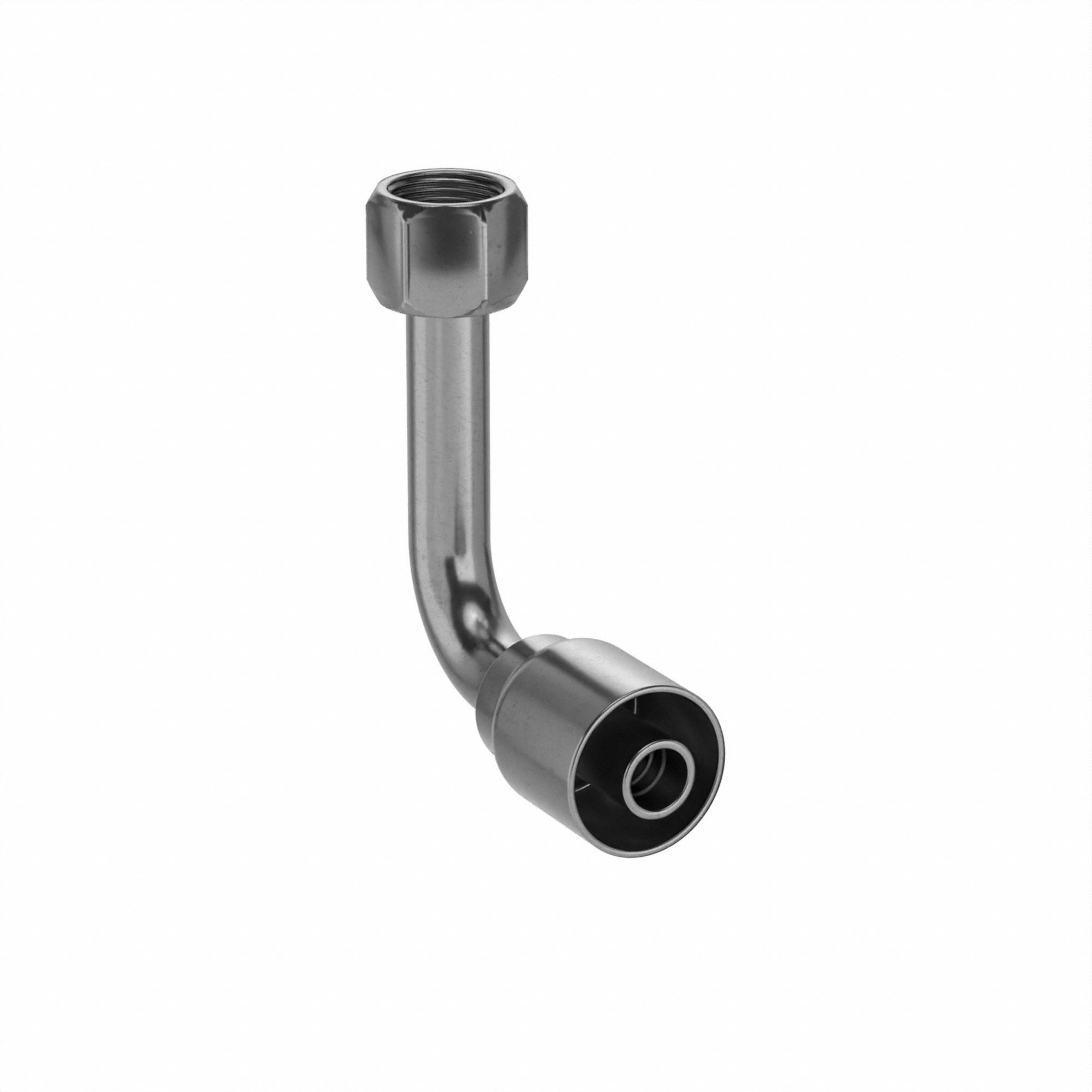

This permanent barbed hydraulic hose fitting is made of steel. This type JIC crimp-style coupling has a female 90 Degrees long drop elbow and is size 3/4 inches x 1 1/16"-12. It has a swivel tube fitting and is free of chomium-6.

This permanent barbed hydraulic hose fitting is made of steel. This type JIC crimp-style coupling has a female 90 Degrees long drop elbow and is size 3/4 inches x 1 1/16"-12. It has a swivel tube fitting and is free of chomium-6.
